Vitalik's new article: The possible future of Ethereum, The Surge

Original Title: 《Possible futures for the Ethereum protocol, part 2: The Surge》

Author: Vitalik Buterin

Compiled by: Karen, Foresight News

Special thanks to Justin Drake, Francesco, Hsiao-wei Wang, @antonttc, and Georgios Konstantopoulos.

Initially, the Ethereum roadmap included two scaling strategies. One (see an early paper from 2015) is "sharding": each node only needs to verify and store a small portion of transactions, rather than verifying and storing all transactions in the chain. Other peer-to-peer networks (like BitTorrent) work this way, so we can certainly make the blockchain work in the same way. The other is Layer 2 protocols: these networks will be built on top of Ethereum, allowing them to fully benefit from its security while keeping most data and computation off the main chain. Layer 2 protocols refer to state channels from 2015, Plasma from 2017, and then Rollup from 2019. Rollup is more powerful than state channels or Plasma, but they require a lot of on-chain data bandwidth. Fortunately, by 2019, sharding research had solved the problem of large-scale verification of "data availability." As a result, the two paths merged, and we got a Rollup-centric roadmap, which remains Ethereum's scaling strategy today.

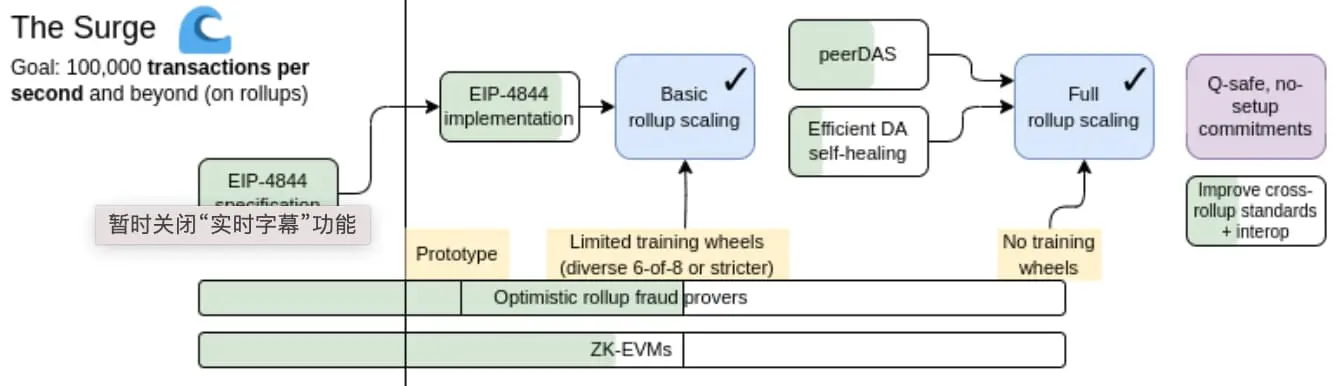

The Surge, 2023 roadmap version

The Rollup-centric roadmap proposes a simple division of labor: Ethereum L1 focuses on being a robust and decentralized base layer, while L2 takes on the task of helping the ecosystem scale. This model is ubiquitous in society: the existence of the court system (L1) is not to pursue ultra-high speed and efficiency, but to protect contracts and property rights, while entrepreneurs (L2) build on this solid foundation, leading humanity to (both literally and metaphorically) Mars.

This year, the Rollup-centric roadmap achieved significant results: with the launch of EIP-4844 blobs, Ethereum L1's data bandwidth has greatly increased, and multiple Ethereum Virtual Machine (EVM) Rollups have entered their first phase. Each L2 exists as a "shard" with its own internal rules and logic, and the diversity and pluralism of shard implementations have now become a reality. But as we have seen, following this path also faces some unique challenges. Therefore, our current task is to complete the Rollup-centric roadmap and address these issues while maintaining the robustness and decentralization unique to Ethereum L1.

The Surge: Key Objectives

1. Future Ethereum can achieve over 100,000 TPS through L2;
2. Maintain the decentralization and robustness of L1;
3. At least some L2 fully inherit Ethereum's core attributes (trustlessness, openness, censorship resistance);
4. Ethereum should feel like a unified ecosystem, rather than 34 different blockchains.

Chapter Contents

1. Scalability Trilemma
2. Further Progress on Data Availability Sampling
3. Data Compression
4. Generalized Plasma
5. Mature L2 Proof Systems
6. Cross-L2 Interoperability Improvements
7. Scaling Execution on L1

Scalability Trilemma

The scalability trilemma is an idea proposed in 2017, which posits that there is a contradiction between three characteristics of blockchain: decentralization (more specifically: low cost of running nodes), scalability (high number of transactions processed), and security (attackers need to compromise a large portion of nodes in the network to cause a single transaction to fail).

It is worth noting that the trilemma is not a theorem, and the posts introducing the trilemma do not come with a mathematical proof. It does provide a heuristic mathematical argument: if a decentralized-friendly node (like a consumer-grade laptop) can verify N transactions per second, and you have a chain that processes k*N transactions per second, then (i) each transaction can only be seen by 1/k nodes, meaning an attacker only needs to compromise a few nodes to push a malicious transaction through, or (ii) your nodes will become powerful, while your chain will not be decentralized. The purpose of this article is not to prove that breaking the trilemma is impossible; rather, it aims to show that breaking the trilemma is difficult and requires stepping outside the thinking framework implied by the argument.

Over the years, some high-performance chains have claimed to solve the trilemma without fundamentally changing their architecture, often by applying software engineering techniques to optimize nodes. This is always misleading, as running a node on these chains is much more difficult than running a node on Ethereum. This article will explore why this is the case and why Ethereum cannot scale solely based on L1 client software engineering.

However, the combination of data availability sampling with SNARKs does solve the trilemma: it allows clients to verify that a certain amount of data is available and that a certain number of computational steps have been correctly executed, while only downloading a small amount of data and performing minimal computation. SNARKs are trustless. Data availability sampling has a subtle few-of-N trust model, but it retains the fundamental property of non-scalable chains, which is that even a 51% attack cannot force bad blocks to be accepted by the network.

Another way to solve the trilemma is through the Plasma architecture, which cleverly incentivizes users to take on the responsibility of monitoring data availability. Back in 2017-2019, when we only had fraud proofs to scale computational capacity, Plasma was very limited in secure execution, but with the rise of SNARKs (zero-knowledge succinct non-interactive arguments), the Plasma architecture has become much more viable for a wider range of use cases than ever before.

Further Progress on Data Availability Sampling

What Problem Are We Solving?

On March 13, 2024, when the Dencun upgrade goes live, the Ethereum blockchain will have 3 blobs of approximately 125 kB each per 12-second slot, or about 375 kB of data availability bandwidth per slot. Assuming transaction data is published directly on-chain, an ERC20 transfer is about 180 bytes, so the maximum TPS for Rollups on Ethereum is: 375000 / 12 / 180 = 173.6 TPS.

If we add Ethereum's calldata (theoretical maximum: 30 million Gas per slot / 16 gas per byte = 1,875,000 bytes per slot), it becomes 607 TPS. Using PeerDAS, the number of blobs could increase to 8-16, which would provide 463-926 TPS for calldata.

This is a significant improvement for Ethereum L1, but it is not enough. We want more scalability. Our mid-term goal is 16 MB per slot, which, combined with improvements in Rollup data compression, would bring approximately 58,000 TPS.

What Is It? How Does It Work?

PeerDAS is a relatively simple implementation of "1D sampling." In Ethereum, each blob is a 4096-degree polynomial over a 253-bit prime field. We broadcast shares of the polynomial, where each share contains 16 evaluation values from 16 adjacent coordinates out of a total of 8192 coordinates. Of these 8192 evaluation values, any 4096 (according to the currently proposed parameters: any 64 out of 128 possible samples) can recover the blob.

PeerDAS works by having each client listen to a small number of subnets, where the i-th subnet broadcasts the i-th sample of any blob and requests the blobs it needs from other subnets by querying peers in the global p2p network (who will listen to different subnets). A more conservative version, SubnetDAS, uses only the subnet mechanism without additional peer-layer queries. The current proposal is for staking nodes to use SubnetDAS, while other nodes (i.e., clients) use PeerDAS.

Theoretically, we can scale "1D sampling" quite large: if we increase the maximum number of blobs to 256 (targeting 128), we can achieve the 16MB goal, with each node in data availability sampling having 16 samples * 128 blobs * 512 bytes per sample blob = 1 MB of data bandwidth per slot. This is just barely within our tolerance: it is feasible, but it means that bandwidth-constrained clients cannot sample. We can optimize this to some extent by reducing the number of blobs and increasing the blob size, but this will raise the cost of reconstruction.

Thus, we ultimately want to go further and implement 2D sampling, which not only samples randomly within blobs but also samples randomly between blobs. By leveraging the linear properties of KZG commitments, we can expand the set of blobs in a block with a new set of virtual blobs that redundantly encode the same information.

Thus, ultimately, we want to go further and implement 2D sampling, which samples randomly not only within blobs but also between blobs. The linear properties of KZG commitments are used to expand the set of blobs in a block, containing a new list of virtual blobs that redundantly encode the same information.

2D sampling. Source: a16z crypto

Crucially, the computation of the commitment expansion does not require blobs, so this scheme is fundamentally friendly to distributed block building. Nodes that actually build blocks only need to have the blob KZG commitments, and they can rely on data availability sampling (DAS) to verify the availability of data blocks. One-dimensional data availability sampling (1D DAS) is also inherently friendly to distributed block building.

What Are the Links to Existing Research?

1. Original post introducing data availability (2018): https://github.com/ethereum/research/wiki/A-note-on-data-availability-and-erasure-coding
2. Follow-up paper: https://arxiv.org/abs/1809.09044
3. Explanatory article on DAS, paradigm: https://www.paradigm.xyz/2022/08/das
4. 2D availability with KZG commitments: https://ethresear.ch/t/2d-data-availability-with-kate-commitments/8081
5. PeerDAS on ethresear.ch: https://ethresear.ch/t/peerdas-a-simpler-das-approach-using-battle-tested-p2p-components/16541 and paper: https://eprint.iacr.org/2024/1362
6. EIP-7594: https://eips.ethereum.org/EIPS/eip-7594
7. SubnetDAS on ethresear.ch: https://ethresear.ch/t/subnetdas-an-intermediate-das-approach/17169
8. Nuances of data recoverability in data availability sampling: https://ethresear.ch/t/nuances-of-data-recoverability-in-data-availability-sampling/16256

What Still Needs to Be Done? What Are the Trade-offs?

Next is to complete the implementation and rollout of PeerDAS. After that, continuously increasing the number of blobs on PeerDAS while carefully monitoring the network and improving the software to ensure security is a gradual process. At the same time, we hope for more academic work to standardize PeerDAS and other versions of DAS and their interactions with issues such as fork choice rule security.

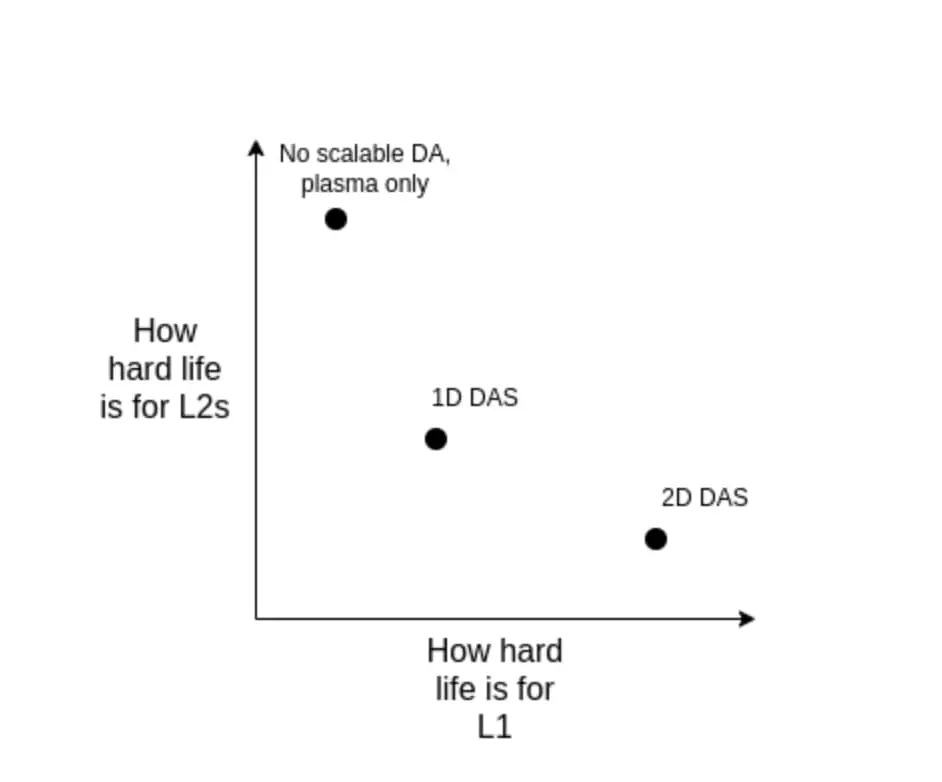

In the further future, we need to do more work to determine the ideal version of 2D DAS and prove its security properties. We also hope to eventually transition from KZG to a quantum-safe and trustless alternative. Currently, it is unclear which candidates are friendly to distributed block building. Even using expensive "brute force" techniques, such as using recursive STARKs to generate validity proofs for reconstructing rows and columns, is not sufficient, because while technically a STARK's size is O(log(n) * log(log(n))) hashes (using STIR), in practice, a STARK is almost as large as the entire blob.

I believe the long-term realistic path is:

1. Implement the ideal 2D DAS;
2. Stick with 1D DAS, sacrificing sampling bandwidth efficiency for simplicity and robustness while accepting a lower data ceiling;
3. (Hard pivot) Abandon DA and fully embrace Plasma as our primary Layer 2 architecture.

Note that even if we decide to scale execution directly at the L1 layer, this option exists. This is because if the L1 layer is to handle a large amount of TPS, L1 blocks will become very large, and clients will want an efficient way to verify their correctness, so we will have to use the same techniques at the L1 layer as with Rollups (like ZK-EVM and DAS).

How Does It Interact with Other Parts of the Roadmap?

If data compression is implemented, the need for 2D DAS will be reduced, or at least delayed; if Plasma is widely used, the demand will further decrease. DAS also poses challenges to distributed block building protocols and mechanisms: while DAS is theoretically friendly to distributed reconstruction, this needs to be combined with proposals for package inclusion lists and their surrounding fork choice mechanisms in practice.

Data Compression

What Problem Are We Solving?

Each transaction in a Rollup takes up a significant amount of on-chain data space: an ERC20 transfer requires about 180 bytes. Even with ideal data availability sampling, this limits the scalability of Layer protocols. With each slot being 16 MB, we get:

16000000 / 12 / 180 = 7407 TPS

What if we could not only solve the numerator problem but also the denominator problem, allowing each transaction in a Rollup to occupy fewer bytes on-chain?

What is it, and how does it work?

In my view, the best explanation is this diagram from two years ago:

In zero-byte compression, each long sequence of zero bytes is replaced with two bytes indicating how many zero bytes there are. Furthermore, we leverage specific properties of transactions:

Signature aggregation: We switch from ECDSA signatures to BLS signatures, which have the property that multiple signatures can be combined into a single signature that can prove the validity of all original signatures. At the L1 layer, BLS signatures are not considered due to the high computational cost of verification even with aggregation. However, in the data-scarce environment of L2, using BLS signatures makes sense. The aggregation feature of ERC-4337 provides a pathway to achieve this.

Replacing addresses with pointers: If an address has been used before, we can replace the 20-byte address with a 4-byte pointer to a location in the history.

Custom serialization of transaction values—most transaction values have very few digits; for example, 0.25 ETH is represented as 250,000,000,000,000,000 wei. The maximum base fee and priority fee are similar. Therefore, we can use a custom decimal floating-point format to represent most currency values.

What Are the Links to Existing Research?

1. Exploring sequence.xyz: https://sequence.xyz/blog/compressing-calldata
2. L2 Calldata optimization contracts: https://github.com/ScopeLift/l2-optimizoooors
3. Validity proof-based Rollups (aka ZK rollups) publish state diffs instead of transactions: https://ethresear.ch/t/rollup-diff-compression-application-level-compression-strategies-to-reduce-the-l2-data-footprint-on-l1/9975
4. BLS wallet - implementing BLS aggregation through ERC-4337: https://github.com/getwax/bls-wallet

What Still Needs to Be Done? What Are the Trade-offs?

The next major task is to actually implement the above solutions. The main trade-offs include:

1. Switching to BLS signatures requires significant effort and will reduce compatibility with trusted hardware chips that can enhance security. Other signature schemes' ZK-SNARK encapsulations can be used as alternatives.

2. Dynamic compression (e.g., replacing addresses with pointers) will complicate client code.

3. Publishing state diffs on-chain instead of transactions will reduce auditability and make many software tools (like block explorers) non-functional.

How Does It Interact with Other Parts of the Roadmap?

Adopting ERC-4337 and eventually incorporating some of its content into the L2 EVM can significantly accelerate the deployment of aggregation techniques. Placing some of ERC-4337 on L1 can speed up its deployment on L2.

Generalized Plasma

What Problem Are We Solving?

Even with 16 MB blobs and data compression, 58,000 TPS may not be sufficient to fully meet the demands of consumer payments, decentralized social, or other high-bandwidth domains, especially when we start considering privacy factors, which could reduce scalability by 3-8 times. For high transaction volume, low-value use cases, one current option is Validium, which keeps data off-chain and employs an interesting security model: operators cannot steal users' funds, but they may temporarily or permanently freeze all users' funds. But we can do better.

What Is It? How Does It Work?

Plasma is a scaling solution that involves an operator publishing blocks off-chain and placing the Merkle root of those blocks on-chain (unlike Rollup, which places the complete blocks on-chain). For each block, the operator sends each user a Merkle branch to prove what changes occurred to that user's assets, or that nothing changed. Users can withdraw their assets by providing the Merkle branch. Importantly, this branch does not have to root from the latest state. Therefore, even if there are issues with data availability, users can still recover their assets by withdrawing their available latest state. If a user submits an invalid branch (for example, withdrawing assets they have already sent to someone else, or the operator has created an asset out of thin air), the legitimate ownership of the asset can be determined through an on-chain challenge mechanism.

Plasma Cash chain diagram. The transaction spending coin i is placed at the i-th position in the tree. In this example, assuming all previous trees are valid, we know Eve currently owns token 1, David owns token 4, and George owns token 6.

Early versions of Plasma could only handle payment use cases and could not effectively scale further. However, if we require each root to be verified with SNARKs, then Plasma becomes much more powerful. Each challenge game can be greatly simplified because we eliminate most possible paths for the operator to cheat. At the same time, it opens up new paths for Plasma technology to scale to a broader range of asset classes. Finally, when the operator does not cheat, users can withdraw funds immediately without waiting for a week-long challenge period.

One way to create an EVM Plasma chain (not the only way): build a parallel UTXO tree using ZK-SNARK that reflects the balance changes made by the EVM and defines a unique mapping of the "same token" at different historical points in time. Plasma structures can then be built on top of this.

A key insight is that Plasma systems do not need to be perfect. Even if you can only protect a subset of assets (for example, only tokens that have not moved in the past week), you have already greatly improved the current state of ultra-scalable EVMs (i.e., Validium).

Another class of structures is hybrid Plasma/Rollup, such as Intmax. These constructs place a minimal amount of data for each user on-chain (e.g., 5 bytes), which allows for certain features between Plasma and Rollup: in the case of Intmax, you can achieve very high scalability and privacy, although even in a 16 MB capacity, it is theoretically limited to about 16,000,000 / 12 / 5 = 266,667 TPS.

What Are the Links to Existing Research?

1. Original Plasma paper: https://plasma.io/plasma-deprecated.pdf
2. Plasma Cash: https://ethresear.ch/t/plasma-cash-plasma-with-much-less-per-user-data-checking/1298
3. Plasma Cashflow: https://hackmd.io/DgzmJIRjSzCYvl4lUjZXNQ?view#🚪-Exit
4. Intmax (2023): https://eprint.iacr.org/2023/1082

What Still Needs to Be Done? What Are the Trade-offs?

The main remaining task is to put the Plasma system into actual production use. As mentioned, Plasma and Validium are not an either/or choice: any Validium can enhance its security properties by incorporating Plasma features into its exit mechanism. The focus of research is to obtain the best properties for EVM (considering trust requirements, worst-case L1 Gas costs, and resistance to DoS attacks, etc.) and alternative specific application structures. Additionally, compared to Rollup, Plasma is conceptually more complex, which needs to be directly addressed through research and building better general frameworks.

The main trade-off in designing with Plasma is that they rely more on operators and are harder to base, although hybrid Plasma/Rollup designs can often avoid this weakness.

How Does It Interact with Other Parts of the Roadmap?

The more effective the Plasma solution, the less pressure there will be on L1 to have high-performance data availability features. Moving activity to L2 can also reduce MEV pressure on L1.

Mature L2 Proof Systems

What Problem Are We Solving?

Currently, most Rollups are not truly trustless. There exists a security committee that has the power to override (optimistic or validity) proof system behavior. In some cases, the proof system may not even run at all, or if it does run, it may only have a "consultative" function. The most advanced Rollups include: (i) some trustless application-specific Rollups, like Fuel; (ii) as of the writing of this article, Optimism and Arbitrum are two full EVM Rollups that have achieved a milestone known as "Stage 1" of partial trustlessness. The reason Rollups have failed to make greater progress is the concern over bugs in the code. We need trustless Rollups, so we must confront and solve this issue head-on.

What Is It? How Does It Work?

First, let’s revisit the "stage" system introduced earlier in this article.

Stage 0: Users must be able to run nodes and synchronize the chain. If verification is fully trusted/centralized, that is acceptable.

Stage 1: There must be a (trustless) proof system ensuring that only valid transactions are accepted. A security committee can exist that can overturn the proof system, but there must be a 75% threshold for voting. Additionally, the quorum-blocking portion of the committee (i.e., 26%+) must be outside the main company building the Rollup. A weaker upgrade mechanism (like a DAO) is allowed, but it must have a long enough delay that if it approves a malicious upgrade, users can withdraw their funds before the funds go live.

Stage 2: There must be a (trustless) proof system ensuring that only valid transactions are accepted. The security committee is only allowed to intervene when there are provable errors in the code, such as if two redundant proof systems are inconsistent with each other, or if one proof system accepts two different post-state roots for the same block (or does not accept anything for a sufficiently long time, like a week). An upgrade mechanism is allowed, but it must have a long delay.

Our goal is to reach Stage 2. The main challenge in reaching Stage 2 is gaining sufficient confidence that the proof system is actually trustworthy enough. There are two main ways to execute this:

1. Formal verification: We can use modern mathematical and computational techniques to prove that (optimistic and validity) proof systems only accept blocks that conform to the EVM specification. These techniques have existed for decades, but recent advances (like Lean 4) have made them more practical, and advancements in AI-assisted proofs may further accelerate this trend.
2. Multi-provers: Create multiple proof systems and tie the funding to these proof systems with a security committee (or other small tools with trust assumptions, like TEE). If the proof systems agree, the security committee has no power; if they disagree, the security committee can only choose between one of them, and it cannot unilaterally impose its answer.

Diagram of multi-provers, combining an optimistic proof system, a validity proof system, and a security committee.

What Are the Links to Existing Research?

1. EVM K Semantics (formal verification work from 2017): https://github.com/runtimeverification/evm-semantics
2. Talk on the multi-prover idea (2022): https://www.youtube.com/watch?v=6hfVzCWT6YI
3. Taiko plans to use multi-proofs: https://docs.taiko.xyz/core-concepts/multi-proofs/

What Still Needs to Be Done? What Are the Trade-offs?

For formal verification, the workload is substantial. We need to create a formally verified version of a complete SNARK prover for the EVM. This is an extremely complex project, although we have already started on it. One trick that can greatly simplify this task is that we can create a formally verified SNARK prover for a minimized virtual machine (like RISC-V or Cairo) and then implement the EVM in that minimized virtual machine (and formally prove its equivalence to other Ethereum virtual machine specifications).

For multi-provers, there are still two main parts that need to be completed. First, we need to have enough confidence in at least two different proof systems to ensure that they are both reasonably secure and that if they have issues, those issues should be different and unrelated (so they do not fail simultaneously). Second, we need to have a very high level of trust in the underlying logic of the merged proof systems. This part of the code is much smaller. There are some ways to make it very small, such as storing funds in a secure multisig contract represented by contracts representing each proof system as signers, but this will increase on-chain Gas costs. We need to find some balance between efficiency and security.

How Does It Interact with Other Parts of the Roadmap?

Moving activity to L2 can reduce MEV pressure on L1.

Cross-L2 Interoperability Improvements

What Problem Are We Solving?

A major challenge facing today's L2 ecosystem is that users find it difficult to navigate. Additionally, the simplest methods often reintroduce trust assumptions: centralized cross-chain, RPC clients, etc. We need to make using the L2 ecosystem feel like using a unified Ethereum ecosystem.

What Is It? How Does It Work?

Cross-L2 interoperability improvements come in many categories. Theoretically, Ethereum centered around Rollup is the same as executing sharded L1. The current Ethereum L2 ecosystem still falls short of the ideal in practice:

1. Chain-specific addresses: Addresses should include chain information (L1, Optimism, Arbitrum, etc.). Once this is achieved, cross-L2 sending can be implemented simply by placing the address in the "send" field, allowing wallets to handle how to send in the background (including using cross-chain protocols).

2. Chain-specific payment requests: There should be a way to easily and standardize messages in the form of "send me X amount of Y type of token on chain Z." This mainly has two application scenarios: (i) payments between people or between people and merchant services; (ii) DApp requests for funds.

3. Cross-chain exchanges and Gas payments: There should be a standardized open protocol to express cross-chain operations, such as "I will send 1 Ether (on Optimism) to someone who sends me 0.9999 Ether on Arbitrum," and "I will send 0.0001 Ether (on Optimism) to someone who includes this transaction on Arbitrum." ERC-7683 is an attempt at the former, while RIP-7755 is an attempt at the latter, although both have broader applications than these specific use cases.

4. Light clients: Users should be able to actually verify the chain they are interacting with, rather than just trusting RPC providers. Helios from a16z crypto can do this (for Ethereum itself), but we need to extend this trustlessness to L2. ERC-3668 (CCIP-read) is one strategy to achieve this.

How a light client updates its view of the Ethereum header chain. Once it has the header chain, it can use Merkle proofs to verify any state object. Once you have the correct L1 state object, you can use Merkle proofs (and signatures if you want to check pre-confirmations) to verify any state object on L2. Helios has already accomplished the former. Scaling to the latter is a standardization challenge.

1. Keystore wallets: Nowadays, if you want to update the keys controlling your smart contract wallet, you must update on all N chains where that wallet exists. A keystore wallet is a technology that allows keys to exist in one place (either on L1 or potentially on L2 later), and then any L2 with a copy of the wallet can read the key from it. This means updates only need to be done once. To improve efficiency, keystore wallets require L2 to have a standardized way to read information from L1 at no cost; there are two proposals for this, L1SLOAD and REMOTESTATICCALL.

How Keystore wallets work

2. A more radical "shared token bridge" concept: Imagine a world where all L2s are validity proof Rollups and each slot submits to Ethereum. Even in such a world, transferring an asset from one L2 to another in native state would still require withdrawals and deposits, incurring significant L1 Gas fees. One way to solve this is to create a shared minimalist Rollup whose sole function is to maintain which L2 owns each type of token and how much balance each has, allowing these balances to be updated in bulk through a series of cross-L2 sending operations initiated by any L2. This would allow cross-L2 transfers without paying L1 gas fees for each transfer, nor would it require liquidity provider-based technologies like ERC-7683.

3. Synchronous composability: Allowing synchronous calls to occur between specific L2s and L1 or between multiple L2s. This helps improve the financial efficiency of DeFi protocols. The former can be achieved without any cross-L2 coordination; the latter requires shared ordering. Rollup-based technologies automatically apply to all these technologies.

What Are the Links to Existing Research?

Chain-specific addresses: ERC-3770: https://eips.ethereum.org/EIPS/eip-3770

ERC-7683: https://eips.ethereum.org/EIPS/eip-7683

RIP-7755: https://github.com/wilsoncusack/RIPs/blob/cross-l2-call-standard/RIPS/rip-7755.md

Scroll keystore wallet design patterns: https://hackmd.io/@haichen/keystore

Helios: https://github.com/a16z/helios

ERC-3668 (sometimes referred to as CCIP read): https://eips.ethereum.org/EIPS/eip-3668

Justin Drake's "based (shared) preconfirmations" proposal: https://ethresear.ch/t/based-preconfirmations/17353

L1SLOAD (RIP-7728): https://ethereum-magicians.org/t/rip-7728-l1sload-precompile/20388

REMOTESTATICCALL in Optimism: https://github.com/ethereum-optimism/ecosystem-contributions/issues/76

AggLayer, which includes the idea of a shared token bridge: https://github.com/AggLayer

What Still Needs to Be Done? What Are the Trade-offs?

Many of the examples above face the dilemma of when to standardize and which layers to standardize. If standardization occurs too early, it may entrench a subpar solution. If standardization occurs too late, it may lead to unnecessary fragmentation. In some cases, there exists a short-term solution that is weaker in attributes but easier to implement, as well as a long-term solution that is "ultimately correct" but takes years to realize.

These tasks are not just technical issues; they are also (and may primarily be) social issues that require cooperation between L2, wallets, and L1.

How Does It Interact with Other Parts of the Roadmap?

Most of these proposals are "higher-level" structures, so considerations at the L1 level have little impact. One exception is shared ordering, which has significant implications for maximum extractable value (MEV).

Scaling Execution on L1

What Problem Are We Solving?

If L2 becomes very scalable and successful, but L1 can still only handle a very small volume of transactions, Ethereum may face many risks:

1. The economic situation of ETH assets will become more unstable, which in turn will affect the long-term security of the network.

2. Many L2s benefit from close ties to the highly developed financial ecosystem on L1; if this ecosystem is significantly weakened, the incentives to become L2 (rather than an independent L1) will diminish.

3. L2 will take a long time to achieve the same level of security as L1.

4. If L2 fails (for example, due to malicious behavior or disappearance of operators), users will still need to rely on L1 to recover their assets. Therefore, L1 needs to be strong enough to at least occasionally handle the highly complex and chaotic cleanup work of L2.

For these reasons, continuing to scale L1 itself and ensuring it can continue to accommodate an increasing number of use cases is very valuable.

What Is It? How Does It Work?

The simplest way to scale is to directly increase the Gas limit. However, this may lead L1 to become centralized, undermining another important feature of Ethereum L1: its credibility as a robust base layer. There is still debate about how sustainable it is to simply increase the Gas limit, and this will vary depending on what other technologies are implemented to make the verification of larger blocks easier (e.g., historical expiry, statelessness, L1 EVM validity proofs). Another important area that needs continuous improvement is the efficiency of Ethereum client software, which is now much more efficient than it was five years ago. An effective strategy for increasing the L1 Gas limit will involve accelerating the development of these verification technologies.

1. EOF: A new EVM bytecode format that is more friendly to static analysis and enables faster implementations. Given these efficiency improvements, EOF bytecode can achieve lower gas fees.
2. Multidimensional Gas pricing: Setting different base fees and limits for computation, data, and storage can increase Ethereum L1's average capacity without increasing maximum capacity (thus avoiding new security risks).
3. Lowering Gas costs for specific opcodes and precompiles - historically, we have often increased the Gas costs for certain underpriced operations to avoid denial-of-service attacks. More can be done to lower the Gas costs for over-priced opcodes. For example, addition is much cheaper than multiplication, but currently, the costs for ADD and MUL opcodes are the same. We can lower the cost of ADD and even make the costs for simpler opcodes like PUSH lower. EOF is overall more optimized in this regard.
4. EVM-MAX and SIMD: EVM-MAX is a proposal that allows for more efficient native big number modular arithmetic as a separate module of the EVM. Unless intentionally exported, the values computed by EVM-MAX can only be accessed by other EVM-MAX opcodes. This allows for greater space to optimize the format for storing these values. SIMD (single instruction multiple data) is a proposal that allows the same instruction to be efficiently executed on an array of values. Together, both can create a powerful coprocessor next to the EVM for more efficient implementation of cryptographic operations. This is particularly useful for privacy protocols and L2 protection systems, thus aiding both L1 and L2 scaling.

These improvements will be discussed in more detail in future Splurge articles.

Finally, a third strategy is native Rollups (or enshrined rollups): essentially, creating many parallel running EVM copies, thus producing a model equivalent to what Rollup can provide, but more natively integrated into the protocol.

What Are the Links to Existing Research?

1. Polynya's Ethereum L1 scaling roadmap: https://polynya.mirror.xyz/epju72rsymfB-JK52uYI7HuhJ-WzM735NdP7alkAQ
2. Multidimensional Gas pricing: https://vitalik.eth.limo/general/2024/05/09/multidim.html
3. EIP-7706: https://eips.ethereum.org/EIPS/eip-7706
4. EOF: https://evmobjectformat.org/
5. EVM-MAX: https://ethereum-magicians.org/t/eip-6601-evm-modular-arithmetic-extensions-evmmax/13168
6. SIMD: https://eips.ethereum.org/EIPS/eip-616
7. Native rollups: https://mirror.xyz/ohotties.eth/P1qSCcwj2FZ9cqo3_6kYI4S2chW5K5tmEgogk6io1GE
8. Max Resnick's interview on the value of scaling L1: https://x.com/BanklessHQ/status/1831319419739361321
9. Justin Drake discussing scaling with SNARKs and native Rollups: https://www.reddit.com/r/ethereum/comments/1f81ntr/comment/llmfi28/

What Still Needs to Be Done? What Are the Trade-offs?

L1 scaling has three strategies that can be pursued either individually or in parallel:

1. Improve technologies (like client code, stateless clients, historical expiry) to make L1 easier to verify, then raise the Gas limit.
2. Lower the costs of specific operations to increase average capacity without increasing worst-case risks;
3. Native Rollups (i.e., creating N parallel copies of the EVM).

Understanding these different technologies reveals various trade-offs. For example, native Rollups share many of the same weaknesses in composability as regular Rollups: you cannot send a single transaction to synchronize operations across multiple Rollups, as you can within contracts on the same L1 (or L2). Raising the Gas limit may undermine other benefits achievable through simplifying L1 verification, such as increasing the proportion of users running verification nodes and increasing the number of solo stakers. Depending on how it is implemented, making specific operations cheaper in the EVM may increase the overall complexity of the EVM.

A significant question that any L1 scaling roadmap needs to answer is: what is the ultimate vision for L1 and L2? Clearly, putting everything on L1 is absurd: potential use cases could involve hundreds of thousands of transactions per second, which would make L1 completely unmanageable (unless we adopt a native Rollup approach). However, we do need some guiding principles to ensure we do not end up in a situation where the Gas limit is increased tenfold, severely undermining the decentralization of Ethereum L1.

One perspective on the division of labor between L1 and L2

How Does It Interact with Other Parts of the Roadmap?

Bringing more users to L1 means not only scaling but also improving other aspects of L1. This means more MEV will remain on L1 (rather than just becoming an issue for L2), so the need to address MEV explicitly will become more urgent. This will greatly enhance the value of fast slot times on L1. At the same time, it heavily relies on the smooth operation of L1 (the Verge) verification.
